Forging Processing Tysim Interlocking Kelly Bar For Rotary Drilling Rig

چین Forging Processing Tysim Interlocking Kelly Bar For Rotary Drilling Rig تامین کننده

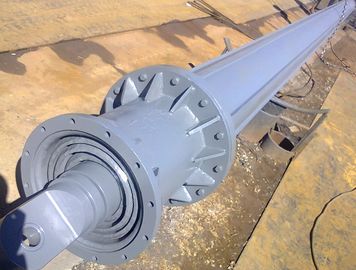

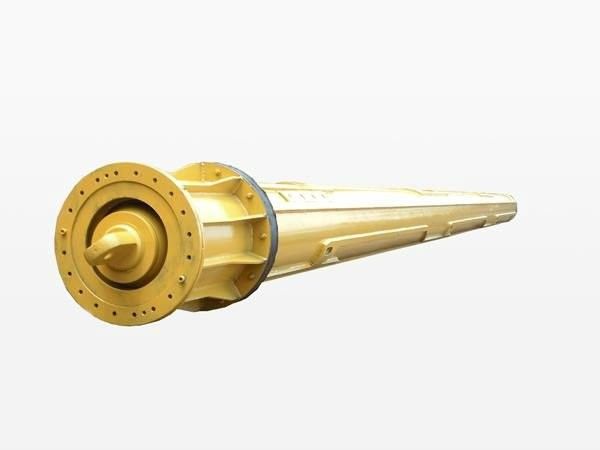

تصویر بزرگ :  Forging Processing Tysim Interlocking Kelly Bar For Rotary Drilling Rig

جزئیات محصول:

محل منبع: جیانگسو چین
نام تجاری: TYSIM
گواهی: CE/ISO9001
Model Number: KB

پرداخت:

Minimum Order Quantity: 1 piece
قیمت: Negotiation
Packaging Details: Nude packing
Delivery Time: 7-10 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
توضیحات محصول جزئیات
Product name: Double Cut Flat Drilling Drilling diameter: 600-3000 mm
Teeth: Bullet tech or roller bits Pitch: 600 mm
Attached equipment: rotary drilling rig Material: Q345B
Axis material: 40Cr Processing type: Forging



Other sizes can be manufactured as per customer demand



The features of TYSIM High quality rotary drilling rig use interlocking kelly bars

  • Adopt the advanced technology of 6-key design in the world and standard modular design.
  • Equipped with advanced processing facilities, workmanship and manufacturing equipments,  kelly bar enjoys a low weight, high strength, high straightness of single bar, thinner tube, smaller inter-tube distance and good abrasion resistance.
  • The raw materials are either imported from Germany like the high abrasion resistance materials, or from Chinese top manufacturer such as the seamless steel tube with alloy. All the tubes made in China are specially made seamless alloy tube, which guarantees the accuracy of the sizes, location, physical properties and easy welding. The small-diameter tubes undergo reheat treatment. The friction kelly bar can be used under full torque.
  • All the outer keys have undergone special heat treatment; therefore, they possess higher hardness, higher flexibility and excellent welding properties, which provide higher abrasion resistance to the keys.

2) Friction Kelly Bar

Friction Kelly bar is another type kelly of bar ,which the external key is composed of 3 or 6 wear -resistant strip without pressunrizing point .This kelly bar can form pressure force when the kelly bar is rotary.can produce peripheral force and the rotary passing down the pressure force,can produce the friction force.This kelly bar has the advantage of opeerating sample .drilling deep ,but with less pressure transmission.So this kelly bar is suitable for the soft and silt laye.


Please see below chart of some of our standard productions for Friction kelly bars:
Name of product EXternal dimeter Pitch No Length section Rated tarquel Depth
(mm) (m) (KN*M) (m)
Friction kelly bar 355 4,5 10-13 180 36-60
377 4,5 10-14 200 36-65
406 4,5 10-15 210 36-70
419 4,5 10-15 250 36-70
440 4,5 10-15 250 36-70
470 4,5,6 10-17 280 36-95
508 4,5,6 10-18.5 320 36-103
530 4,5,6 10-19 380 36-106
575 4,5,6 10-21 420 36-120
630 4,5,6 10-21 450 36-120



Packaging & Shipping

For Bauer Use Key Parts Of Kelly Bar for Rotary Drilling Rig, Seamless Steel Tube Drilling Kelly Bar
