Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs

چین Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs تامین کننده
Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs تامین کننده Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs تامین کننده Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs تامین کننده

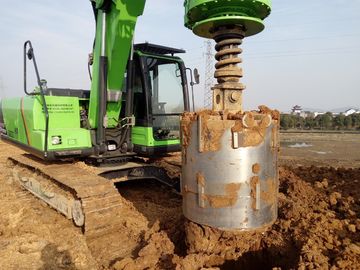

تصویر بزرگ :  Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs

جزئیات محصول:

محل منبع: جیانگسو چین
نام تجاری: TYSIM
گواهی: ISO 9001, CE
Model Number: KR50

پرداخت:

Minimum Order Quantity: 1 set
قیمت: Negotiation
Packaging Details: One 40 Container
Delivery Time: 30-45 days
Supply Ability: 20 set per year
Contact Now
توضیحات محصول جزئیات
Max. torque: 50kN.m Max. drilling diameter: 1200mm
Max. drilling depth: 20m Working speed: 7~40rpm
Max. crowd pressure: 70kN Main winch line pull: 65kN
Max. cylinder stroke: 1100mm Operating height: 10390mm
Total weight: 6.5t

Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs

Technical Specification



Rotary Drilling Rig Model KR40A KR50A
Excavator Size 8t-13t 14t-16t 20t-23t 24t+
Max. torque 32-42 kN.m 50 kN.m 50 kN.m 50 kN.m
Max. drilling diameter 1200 mm 1200 mm 1200 mm 1200 mm
Max. drilling depth 12 m 16 m 20 m 24 m
Max. cylinder thrust 70 kN 70 kN 75 kN 75 kN
Max. cylinder trip 600/900 mm 1100 mm 1100 mm 1100 mm
Main winch pull force 45 kN 65 kN 65 kN 65 kN
Main winch speed 30 m/min 48 m/min 48 m/min 48 m/min
Mast inclination(Lateral) ±6° ±6° ±6° ±6°
Mast inclination(Forward) -30°~+60° -30°~ +90° -30°~ +90° -30°~ +90°
Working speed 7-40rpm 7-40rpm 7-40rpm 7-40rpm
Min. radius of gyration 2750mm 2800mm 2950mm 5360mm
Max. pilot pressure 31.5Mpa 31.5Mpa 31.5Mpa 31.5Mpa
Operating height 7181mm 8868mm 9926mm 11421mm
Operating width 2300mm 2600mm 2800mm 3300mm
Transport height 3014mm 2731mm 3150mm 3311mm
Transport width 2300mm 2600mm 2800mm 3300mm
Transport length 7157mm 10390mm 11492mm 12825mm
Transport weight 5.4t 6.1t 6.5t 7t
Remark Restructuring big arm Restructuring big arm Restructuring big arm Original arm

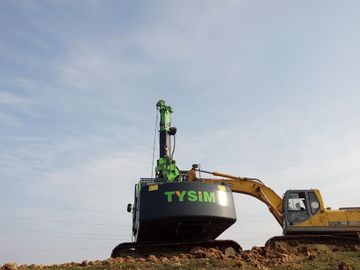

Product Display:



1. EU EN16228 safety standard, high security;

2. Overall transport modular piling rig;

3. High-performance hydraulic system and constrol system;

4. Monitor depth timely;

5. Universality, easy operation and maintenance.

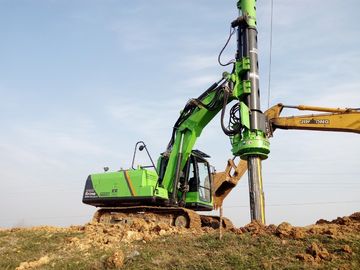

Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs



Production Process:



Max. torque 50kN.m Hydraulic Piling Rig TYSIM KR50A Foundation Drilling Rigs






Our Services:


Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling equipment in China, best quality & best service.



2. Supply professional customized service to meet all your requirements.



3. Our hydraulic small piling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia, Argentina, Indonesia and others.



4. Competitive price.



FAQ:



Q1: What is the warranty of the hydraulic piling rig?

The warranty period for new machine is half an year or 1000 working hours, whichever comes first will be applied.



Please contact with us for detailed Warranty Regulation.





Q2: What's your service ?



We can offer professional technical support and good after-sale service to you.



Modification methods will be different according to different models and configurations of your owned excavators.



Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.



Before modifying, you need to confirm technical specification.
