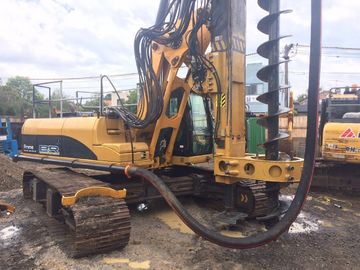

تصویر بزرگ :  Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m

جزئیات محصول:

محل منبع: جیانگسو چین
نام تجاری: TYSIM
گواهی: CE ISO9001
Model Number: KR125M

پرداخت:

Minimum Order Quantity: 1 set
قیمت: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. Method Two: Flat rack container
Delivery Time: 40 days after receiving the payment
Supply Ability: 10 sets per year
Contact Now
توضیحات محصول جزئیات
Torque: 125 kN.m Max. diameter: 700 mm
Max. drilling depth: 15 m Mast inclination(forward):
Transport height: 3500 mm Transport width: 2990 mm
Transport length: 13960 mm Overall weight: 35 t

Technical Specification



Technical specification of KR125M rotary drilling rig (CFA &rotary drilling rig)

CFA construction method





Max. diameter 700mm
Max. drilling depth 15m
Main winch line pull 240 kN

Rotary drilling construction method









Max. Diameter 1300 mm
Max. drilling depth 37m
Main winch line pull 120 kN
Main winch line speed 78 m/min

Working parameters

















Max. torque 125 kN.m
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 204 kN

Operating size



Operating height 18200 mm(CFA)/14800mm(rotary drilling)
Operating width 2990 mm

Transport size





Transport height 3500 mm
Transport width 2990 mm
Transport length 13960 mm
Total weight Overall weight 35 t



Product Details



1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

Small Hydraulic Rotary Piling Rig With 78 m/min Main Winch Line Speed 125 kN.m Max. drilling depth15 m Torque 125 kN.m





Why Choose Us?



1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.

2. Supply professional customized service to meet all your requirements.

3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.

4. Competitive price.



FAQ


Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
