KP315A Hydraulic Pile Breaker Round Concrete Column , Pile Diameter 300mm - 1050mm

چین KP315A Hydraulic Pile Breaker Round Concrete Column , Pile Diameter 300mm - 1050mm تامین کننده
KP315A Hydraulic Pile Breaker Round Concrete Column , Pile Diameter 300mm - 1050mm تامین کننده KP315A Hydraulic Pile Breaker Round Concrete Column , Pile Diameter 300mm - 1050mm تامین کننده

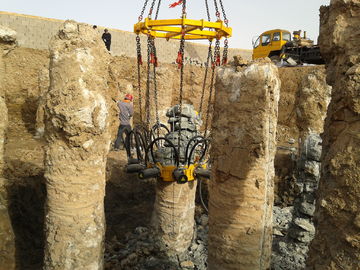

تصویر بزرگ :  KP315A Hydraulic Pile Breaker Round Concrete Column , Pile Diameter 300mm - 1050mm

جزئیات محصول:

محل منبع: جیانگسو چین
نام تجاری: TYSIM
گواهی: CE, ISO9001
Model Number: KP315A

پرداخت:

Minimum Order Quantity: 1 set
قیمت: Negotiation
Packaging Details: wooden packing, suitable for shipping
Delivery Time: 7-15 workdays after receiving the advanced payment
Supply Ability: 20 sets per mouth
Contact Now
توضیحات محصول جزئیات
Pile diameter: 300~1050mm Max.rod pressure: 280kN
Crowd stroke: 135mm Max. crowd pressure: 30MPa
Max. cylinder required: 20L/min Quantity/8h: 60/8h
Max. single cutting height: ≤300mm Single module weight: 100kg
Single module size: 645*444*316 mm Type: hydraulic pile breaker
Colour: yellow or green

KP315A Hydraulic Pile Breaker for Breaking 300mm-1050mm Round Concrete Column





Product Details



1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder

2. Module-----Steel Casing, which is stronger than iron welding

3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity



Technical specification KP315A (13 modules combination)
Pile diameter Φ300~Φ1050mm
Max.rod pressure 280kN
Max. cylinder stroke 135mm
Max. crowd pressure 30MPa
Max. single cylinder flow 20L/min
Quantity/8h 160/8h
Max. single cutting height ≤300mm
Excavator capacity ≥7t
Single module weight 100kg
Single module size 645×444×316 mm
Operating size Φ2098×Φ4840 mm
Total weight 1.7t



KP315A construction parameters
Module numbers The diameter range Platform Weight Weight Height of single crush pile
6 Φ300~Φ350 mm ≥12 t 1000 kg ≤300 mm
7 Φ350~Φ450 mm ≥12 t 1100 kg ≤300 mm
8 Φ450~Φ550 mm ≥16 t 1200 kg ≤300 mm
9 Φ550~Φ650 mm ≥16 t 1300 kg ≤300 mm
10 Φ650~Φ760 mm ≥20 t 1400 kg ≤300 mm
11 Φ760~Φ860 mm ≥20 t 1500 kg ≤300 mm
12 Φ860~Φ960 mm ≥20 t 1600 kg ≤300 mm
13 Φ960~Φ1050 mm ≥20 t 1700 kg ≤300 mm



Performance

1. Simply operated with less staff, reducing the construction cost.

2. Crushing the piles wholly, reducing the consumption of energy.

3. Using adjustable chain, the pile breaker/cutter can be applied to constructions in different terrains.

4. Full hydraulic drive, low noise operation.

5. Quick assembled, more convenient to transport and more effciently.

6. Applying new material and new technology makes it much more reliable and reduces maintenance cost.

7. The design of simple changing modular and general technology can realize quick maintenance and extend the service life.

8. The design of long life can bring customers optimal benefits.



The operation steps of the pile

1. Make the pile breaker move to the place of the pile head.

2. Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.

3. Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.

4. After cutting the pile, hoist the concrete block.

5. Move the crushed pile to the designed position.
