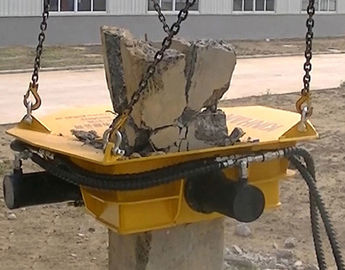

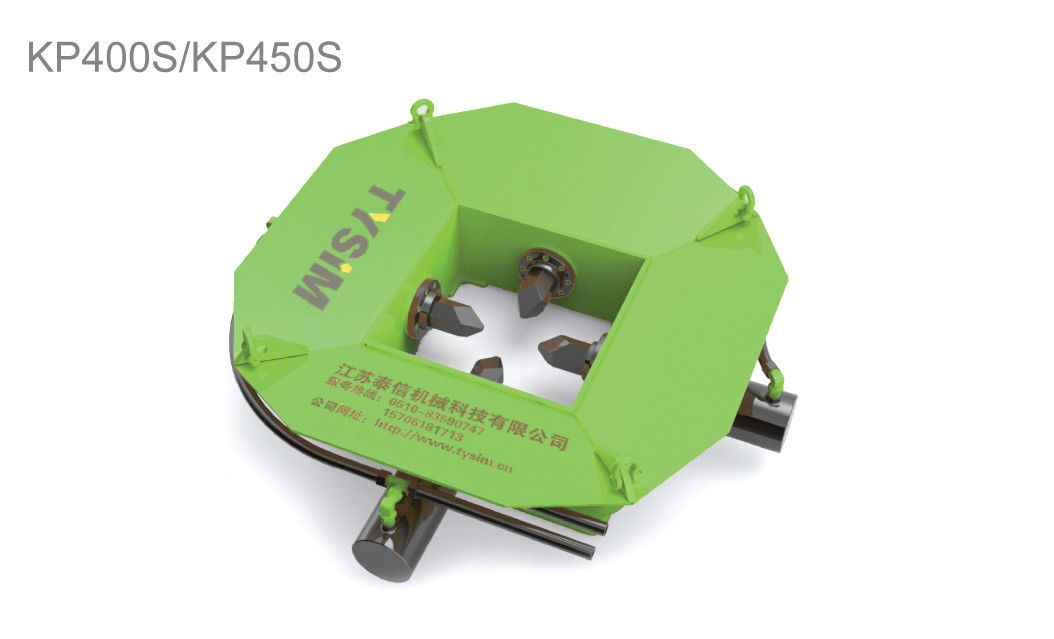

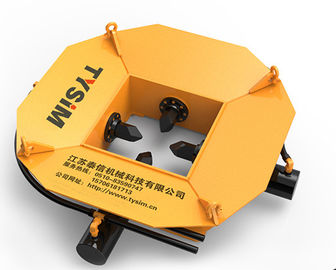

TYSIM Hydraulic Piling Rig KP450S
| Technical Specification of KP450S Hydraulic Pile Breaker | |
| Type | KP450S |
| Pile length | 350~450mm |
| Max. rod pressure | 280kN |
| Max. cylinder stroke | 135mm |
| Max. crowd pressure | 30MPa |
| Max. single cylinder flow | 20L/min |
| Quantity/8h | 100/8h |
| Max. single cutting height | ≤300mm |
| Excavator capacity | ≥8t |
| Operating size | 1490×1490×1500mm |
| Total weight | 0.65t |
Product Details
1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
2. Module-----Steel Casing, which is stronger than iron welding
3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
Performance
1. The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
2. Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
3. It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
Why Choose Us?
1. Easy to operate. speed up to 100 piles in a 8 hour shift.
2. Little digging due to small dimensions.
3. Wear parts very durable and no special skills required for maintenance
4. Low machine weight, easy to connect to small excavator.
